Sustainable & Circular Production of Mineral Critical Raw Materials and Mining Waste Facility (SCIMIN-CRM & MWF) Ontology

This version:
http:/purl.org/scimin-crm-mwf/1.0
Latest version:
http:/purl.org/scimin-crm-mwf
Authors:
Rajesh PIRYANI, Researcher AKKODIS Research Sadeq ZOUGARI, Researcher AKKODIS Research
Contributors:
Rajesh PIRYANI, Researcher AKKODIS Research Sadeq ZOUGARI, Researcher AKKODIS Research
Download serialization:
JSON-LD RDF/XML N-Triples TTL
License:
CC BY 4.0
Visualization:
Visualize with WebVowl
Cite as:
Rajesh PIRYANI, Researcher AKKODIS Research; Thibault GAUTHERON, Intern AKKODIS Research; Sadeq ZOUGARI, Researcher AKKODIS Research. Sustainable & Circular Production of Mineral Critical Raw Materials and Mining Waste Facility (SCIMIN-CRM & MWF) Ontology. Retrieved from: http:/purl.org/scimin-crm-mwf/1.0
Provenance of this page
Ontology Specification Draft

Abstract

It is an ontology for Sustainable and Circular Production of Critical Mineral Raw Materials and Mining Waste Facilities.

Introduction back to ToC

It is an ontology for Sustainable and Circular Production of Critical Mineral Raw Materials and Mining Waste Facilities. It aims to represent the key concepts and relationships involved in the life cycle of Mining Waste Facilities (MWFs). By capturing this life cycle—from exploration and exploitation to closure—the ontology enables decision support and reasoning within the SCIMIN-CRM MWF domain.
SCIMIN-CRM MWF Life Cycle

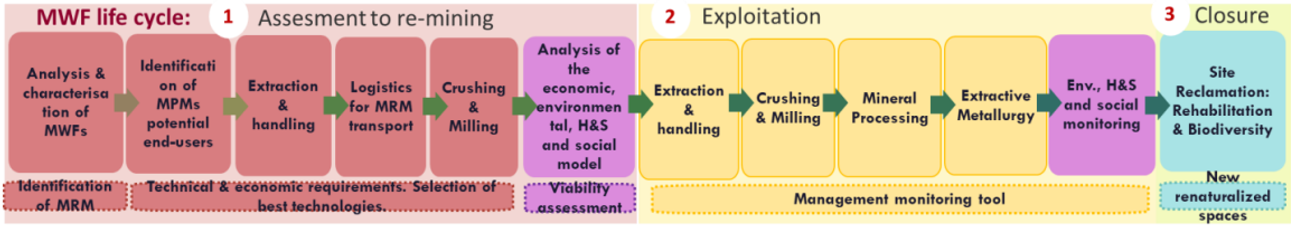

Figure 1. SCIMIN‑CRM Mining Waste Facility (MWF) Life Cycle.

Namespace declarations

Table 1: Namespaces used in the document
[Ontology NS Prefix]<http:/purl.org/scimin-crm-mwf/>
core<http:/purl.org/scimin-crm-mwf/core:>
dc<http://purl.org/dc/elements/1.1/>
dcterms<http://purl.org/dc/terms/>
owl<http://www.w3.org/2002/07/owl#>
rdf<http://www.w3.org/1999/02/22-rdf-syntax-ns#>
rdfs<http://www.w3.org/2000/01/rdf-schema#>
xml<http://www.w3.org/XML/1998/namespace>
xsd<http://www.w3.org/2001/XMLSchema#>

Sustainable & Circular Production of Mineral Critical Raw Materials and Mining Waste Facility (SCIMIN-CRM & MWF) Ontology: Overview back to ToC

This ontology has the following classes and properties.

Classes

Object Properties

Data Properties

Annotation Properties

Sustainable & Circular Production of Mineral Critical Raw Materials and Mining Waste Facility (SCIMIN_CRM & MWF) Ontology: Description back to ToC

It is an ontology for Sustainable and Circular Production of Critical Mineral Raw Materials and Mining Waste Facilities. It aims to represent the key concepts and relationships involved in the life cycle of Mining Waste Facilities (MWFs). By capturing this life cycle—from exploration and exploitation to closure—the ontology enables decision support and reasoning within the SCIMIN-CRM platform.

Cross-reference for Sustainable & Circular Production of Mineral Critical Raw Materials and Mining Waste Facility (SCIMIN_CRM & MWF) Ontology classes, object properties and data properties back to ToC

This section provides details for each class and property defined by Sustainable & Circular Production of Mineral Critical Raw Materials and Mining Waste Facility (SCIMIN_CRM & MWF) Ontology.

Classes

Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Activity

When the deposit is in operation
has sub-classes
Economic Activity c, Excavation Activity c, Exploration Activity c, Reclamation Activity c, Recovery Activity c, Sampling Activity c
is in domain of
has Community Engagement Strategy op, has Control Measure op, has Finished dp, has Incident op, has Operation op, has Risk op, need Permit op
is in range of
has Activity op

Airborne Contaminantc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/AirborneContaminant

Harmful substances suspended in the air, such as heavy metals or silica, that pose inhalation risk
has super-classes
Airborne Hazard c
is disjoint with
Dust Hazard c

Biodiversity Assessment Guidelinec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/BiodiversityAssessmentGuideline

has super-classes
Guidelines c
is disjoint with
Desktop Proximity Guideline c, Habitats Management Guideline c, Species Management Guideline c

Biodiversity Assessment Methodc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/BiodiversityAssessmentMethod

has super-classes
Assessment Method c
has sub-classes
Habitats Assessment Method c, Species Assessment Method c

Biodiversity Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/BiodiversityImpact

Any change caused by a proposed activity to species and habitats, ecosystems and landscapes
has super-classes
Environmental Impact c
has sub-classes
Habitats Impact c, Species Impact c, Wildlife Impact c

Blasting Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/BlastingOperation

has super-classes
Mineral Processing Operation c

Chemical Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ChemicalAnalysisOperation

process of determining the chemical composition of a substance using a range of methods and instruments to identify, characterize, and quantify its components
has super-classes
Laboratory Analysis Operation c
is disjoint with
Mineralogical Analysis Operation c, Physical And Environmental Testing Operation c, Quality Assurance And Control Operation c, Sampling Preparation Operation c

Compaction Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/CompactionOperation

Compaction of minerals includes the technologies for moving and densifying minerals by vibration, impaction and pressure, mainly used in construction applications. MWEI BREF : Process resulting in a reduction in volume. The change typically results from externally applied loads, creating tighter packing of the solid particles. In fine soils in particular, this requires an egress of pore water. Greater compaction often results in increased consolidation
has super-classes
Mineral Processing Operation c
is disjoint with
Crushing And Screening Operation c, Drilling Operation c, Grinding Operation c, Material Handling Operation c, Milling Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Containment Systemc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ContainmentSystem

has super-classes
Control Measure c
has sub-classes
Covers c, Liners c
is disjoint with
Enclosures c, Protocol c, Water Sprays c

Control Measurec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ControlMeasure

Techniques or technologies used to reduce exposure to hazardous substances, such as water sprays or enclosures
has sub-classes
Containment System c, Enclosures c, Protocol c, Water Sprays c
is in domain of
has Efficiency dp
is in range of
has Control Measure op

Country Levelc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/CountryLevel

has super-classes
Level c
is disjoint with
E U Level c, Local Level c

Coversc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Covers

has super-classes
Containment System c
is disjoint with
Liners c

Crushing And Screening Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/CrushingAndScreeningOperation

Crushing and screening is the first controlled size reduction stage in the process. This is the main process in aggregate production and a preparation process for further size reduction. MWEI BREF : Comminution process that reduces the particle size of ore to such a level that grinding can be carried out. Usually, this is accomplished by compression of ore against rigid surfaces, or by impact against surfaces in a rigidly constrained motion path. MWEI BREF : Screening Separating material into size fractions.
has super-classes
Mineral Processing Operation c
is disjoint with
Compaction Operation c, Drilling Operation c, Grinding Operation c, Material Handling Operation c, Milling Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Crushing Milling Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/CrushingMillingEquipment

What machinery/equipment is suitable to achieve desired particle size.
has super-classes
Equipment c
is disjoint with
Processing Equipment c, Transport Equipment c

Desktop Proximity Guidelinec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/DesktopProximityGuideline

Guideline defining the scope and purpose of a desktop proximity analysis, and how to use its output
has super-classes
Guidelines c
is disjoint with
Biodiversity Assessment Guideline c, Habitats Management Guideline c, Species Management Guideline c

Dewatering Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/DewateringOperation

MWEI BREF : Process of removing water from an underground mine or open pit, or from the surrounding rock or non-lithified area. The term is also commonly used for the reduction of water content in concentrates, extractive waste from mineral processing and treatment sludge. In hydrocarbon extraction, dewatering may refer to removing water from water-based drilling muds and cuttings.
has super-classes
Mineral Processing Operation c

Drilling Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/DrillingOperation

Drilling (and blasting) is the technology of achieving primary fragmentation of “in situ” minerals. This is the starting point for most mineral processes with the exception of natural minerals in the form of sand and gravel.
has super-classes
Mineral Processing Operation c
is disjoint with
Compaction Operation c, Crushing And Screening Operation c, Grinding Operation c, Material Handling Operation c, Milling Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Dust Emissionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/DustEmission

has super-classes
Environmental Impact c
is disjoint with
Green House Gas Emission c, Light Pollution c, Noise Pollution c, Vibration Emission c, Water Pollution c, Wildlife Impact c

Dust Hazardc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/DustHazard

has super-classes
Airborne Hazard c
is disjoint with
Airborne Contaminant c

E U Levelc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EULevel

has super-classes
Level c
is disjoint with
Country Level c, Local Level c

Economic Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EconomicActivity

has super-classes
Activity c
is in domain of
has N A C E Code op

Economic Evaluation Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EconomicEvaluationOperation

has super-classes
Exploration Operation c
is in range of
has Economic Evaluation op

Economic Restrictionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EconomicRestriction

has super-classes
Restriction c
is disjoint with
Environmental Restriction c, Social Restriction c, Spatial Restriction c, Technological Restriction c

Economic Sustainabilityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EconomicSustainability

has super-classes
Sustainability c

Economical Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EconomicalImpact

has super-classes
Impact c

Economical Riskc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EconomicalRisk

The potential financial loss or cost associated with hazardous substance management or incidents
has super-classes
Risk c
is disjoint with
Environmental Risk c, Health Risk c

Electrical Tomography Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ElectricalTomographyOperation

non-invasive imaging technique that creates 2D or 3D images of an object's electrical properties by injecting electric current and measuring the voltage differences
has super-classes
Geotechnical Assessment Operation c
is disjoint with
Geo Electrical Inversion Operation c, Ground Penetrating Radar Operation c, Vertical Electrical Sounding Operation c

Electrode Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ElectrodeEquipment

has super-classes
Exploration Equipment c
is disjoint with
Multicable Equipment c, Resistivimeter Equipment c

Emergency Protocolc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EmergencyProtocol

Predefined procedures for responding to hazardous substances releases or other emergencies
is in range of
has Emergency Protocol op

Enclosuresc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Enclosures

has super-classes
Control Measure c
is disjoint with
Containment System c, Protocol c, Water Sprays c

Environmental And Risk Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalAndRiskAnalysisOperation

has super-classes
Exploration Operation c
is in range of
has Environmental And Risk Analysis op

Environmental Footprint Environmental Sustainabilityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalFootprintEnvironmentalSustainability

has super-classes
Environmental Sustainability c
is disjoint with
Regulation And Compliance Environmental Sustainability c

Environmental Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalImpact

Any change caused by a proposed activity to land, water, air and biodiversity. The environmental effects identified and quantified through LCA in relation to mining operations. MWEI BREF : The direct or indirect introduction, as a result of human activity, of substances, vibrations, heat or noise into air, water or land which may be harmful to human health or the quality of the environment, result in damage to material property, or impair or interfere with amenities and other legitimate uses of the environment.
has super-classes
Impact c
has sub-classes
Biodiversity Impact c, Dust Emission c, Green House Gas Emission c, Land Impact c, Light Pollution c, Noise Pollution c, Vibration Emission c, Water Pollution c
is in range of
applies To op, has Environmental Impact op

Environmental Impact Measurementc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalImpactMeasurement

has super-classes
Measurement c

Environmental Restrictionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalRestriction

has super-classes
Restriction c
is disjoint with
Economic Restriction c, Social Restriction c, Spatial Restriction c, Technological Restriction c

Environmental Riskc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalRisk

Potential harm to the environment caused by hazardous substances or activities
has super-classes
Risk c
is disjoint with
Economical Risk c, Health Risk c

Environmental Sustainabilityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/EnvironmentalSustainability

has super-classes
Sustainability c
has sub-classes
Environmental Footprint Environmental Sustainability c, Regulation And Compliance Environmental Sustainability c

Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Equipment

has sub-classes
Crushing Milling Equipment c, Exploration Equipment c, Processing Equipment c, Transport Equipment c
is in domain of
has Energy dp
is in range of
has Equipment op
is disjoint with
Standardized Protocols c

Excavation Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExcavationActivity

The process of digging or removing tailings, which may release hazardous substances into the air
has super-classes
Activity c
is in domain of
has Airborne Hazard op

Expected Benefit Scenarioc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExpectedBenefitScenario

has super-classes
Scenario c

Expected Cost Scenarioc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExpectedCostScenario

has super-classes
Scenario c

Expected Risk Scenarioc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExpectedRiskScenario

has super-classes
Scenario c

Exploration Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExplorationActivity

has super-classes
Activity c
is in range of
has Exploration Activity op

Exploration Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExplorationEquipment

has super-classes
Equipment c
has sub-classes
Electrode Equipment c, Multicable Equipment c, Resistivimeter Equipment c

Exploration Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ExplorationOperation

has super-classes
Operation c
has sub-classes
Economic Evaluation Operation c, Environmental And Risk Analysis Operation c, Geotechnical Assessment Operation c, Laboratory Analysis Operation c

Feeding Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/FeedingOperation

has super-classes
Material Handling Operation c
is disjoint with
Loading Operation c, Storing Operation c, Transportation Operation c, Unloading Operation c

General L C Ac back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GeneralLCA

LCA is a method for evaluating environmental impacts across the entire life cycle of products, processes, or services.
has super-classes
L C A c
has sub-classes
Goal And Scope Definition c, Interpretation c, L C I c, L C I A c
is disjoint with
Mining L C A c

Geo Electrical Inversion Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GeoElectricalInversionOperation

geophysical process of mathematically modelling subsurface electrical resistivity distributions from measured geoelectrical data
has super-classes
Geotechnical Assessment Operation c
is disjoint with
Electrical Tomography Operation c, Ground Penetrating Radar Operation c, Vertical Electrical Sounding Operation c

Geochemical Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GeochemicalAnalysisOperation

has super-classes
Laboratory Analysis Operation c

Geotechnical Assessment Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GeotechnicalAssessmentOperation

Engineering analysis to determine the properties of a site's soil and rock, identifying conditions, risks, and mechanical properties to ensure the stability and safety of a construction or infrastructure project.
has super-classes
Exploration Operation c
has sub-classes
Electrical Tomography Operation c, Geo Electrical Inversion Operation c, Ground Penetrating Radar Operation c, Vertical Electrical Sounding Operation c

Goal And Scope Definitionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GoalAndScopeDefinition

has super-classes
General L C A c
is disjoint with
Interpretation c, L C I c, L C I A c

Granulometryc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Granulometry

It is the classification of a mineral's size. A particle size analysis determines the proportion of minerals in different fractions.
is in domain of
has Particle Size dp, has Size Distribution dp
is in range of
has Granulometry op

Green House Gas Emissionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GreenHouseGasEmission

has super-classes
Environmental Impact c
is disjoint with
Dust Emission c, Light Pollution c, Noise Pollution c, Vibration Emission c, Water Pollution c, Wildlife Impact c

Grinding Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GrindingOperation

Grinding is the stage of size reduction (wet or dry) where the liberation size for individual minerals can be reached. By further size reduction filler (mineral powder) is produced.
has super-classes
Mineral Processing Operation c
is disjoint with
Compaction Operation c, Crushing And Screening Operation c, Drilling Operation c, Material Handling Operation c, Milling Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Ground Penetrating Radar Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/GroundPenetratingRadarOperation

has super-classes
Geotechnical Assessment Operation c
is disjoint with
Electrical Tomography Operation c, Geo Electrical Inversion Operation c, Vertical Electrical Sounding Operation c

Habitats Assessment Methodc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/HabitatsAssessmentMethod

has super-classes
Biodiversity Assessment Method c
is disjoint with
Species Assessment Method c

Habitats Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/HabitatsImpact

The impact of a proposed activity on the extent and condition of habitats
has super-classes
Biodiversity Impact c

Habitats Management Guidelinec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/HabitatsManagementGuideline

Guideline defining how to decide on management measures that create the best possible positive outcome for habitat extent and condition
has super-classes
Guidelines c
is disjoint with
Biodiversity Assessment Guideline c, Desktop Proximity Guideline c, Species Management Guideline c

Hazardous Substancec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/HazardousSubstance

Any material that poses a threat to human health or the environment due to its chemical or physical properties
is in domain of
has Emergency Protocol op
is in range of
contains Hazardous Substance op

Health Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/HealthImpact

Documented or potential effects of recovery operations on the health of nearby populations
has super-classes
Impact c

Health Riskc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/HealthRisk

Potential harm to human health due to exposure to hazardous substances or unsafe conditions
has super-classes
Risk c
is disjoint with
Economical Risk c, Environmental Risk c

Humidityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Humidity

has super-classes
Site Condition c

Incidentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Incident

Specific events involving hazardous substance release or exposure, including their nature and management
is in domain of
has Emergency Protocol op, is Historical Incident dp
is in range of
has Incident op

Industrial Mineralc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/IndustrialMineral

has super-classes
Mineral c
is disjoint with
Metal c, Ore c, Rock c

Interpretationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Interpretation

has super-classes
General L C A c
is disjoint with
Goal And Scope Definition c, L C I c, L C I A c

L C Ac back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LCA

has super-classes
Assessment Method c
has sub-classes
General L C A c, Mining L C A c
is in domain of
applies To op

L C Ic back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LCI

has super-classes
General L C A c
is disjoint with
Goal And Scope Definition c, Interpretation c, L C I A c

L C I Ac back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LCIA

has super-classes
General L C A c
is disjoint with
Goal And Scope Definition c, Interpretation c, L C I c

Laboratory Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LaboratoryAnalysisOperation

Laboratory analyses are essential to deepen the characterization of materials present in MWFs, aiming to evaluate their potential for recovery or management.
has super-classes
Exploration Operation c
has sub-classes
Chemical Analysis Operation c, Geochemical Analysis Operation c, Mineralogical Analysis Operation c, Petrological Analysis Operation c, Physical And Environmental Testing Operation c, Quality Assurance And Control Operation c, Sampling Preparation Operation c, Thermal Analysis Operation c, Thermogravimetric Analysis Operation c
is in range of
has Laboratory Analysis op

Land Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LandImpact

has super-classes
Environmental Impact c

Leaching Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LeachingOperation

MWEI BREF : Extraction of soluble components from raw materials by the action of a percolating liquid (e.g. water). For example, gold can be extracted by heap leaching of a porous ore, or pulverised extractive waste from mineral processing. Other methods are tank leaching of ore, concentrates or extractive waste from mineral processing and in-situ leaching. Leaching may also be an unwanted process leading to polluted drainage (see "leachate"). Bio-leaching is a particular form of leaching involving living organisms
has super-classes
Mineral Processing Operation c

Legal Restrictionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LegalRestriction

Laws and regulations that may limit or condition recovery operations
has super-classes
Restriction c

Light Pollutionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LightPollution

has super-classes
Environmental Impact c
is disjoint with
Dust Emission c, Green House Gas Emission c, Noise Pollution c, Vibration Emission c, Water Pollution c, Wildlife Impact c

Linersc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Liners

has super-classes
Containment System c
is disjoint with
Covers c

Loading Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LoadingOperation

has super-classes
Material Handling Operation c
is disjoint with
Feeding Operation c, Storing Operation c, Transportation Operation c, Unloading Operation c

Local Levelc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/LocalLevel

has super-classes
Level c
is disjoint with
Country Level c, E U Level c

Locationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Location

General information, location of deposit, extisting infrastructure issues, map of location. https://www.wikidata.org/wiki/Property:P625 https://www.wikidata.org/wiki/Q142
is in range of
has Location op

Macroscopic Characteristicsc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MacroscopicCharacteristics

has super-classes
core: Characteristics c
is in domain of
has Mechanical Resistance dp

Materialc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Material

INSPIRE: EarthMaterial is an abstract class which holds a description of a naturally occurring substance in the Earth. Earth Material represents material composition or substance, and is thus independent of quantity or location.
is in domain of
contains Hazardous Substance op, generate Residual Material op, has Density dp, has Depth dp, has Evaluation Parameter op, has Granulometry op, has Mineral op, has Thickness dp
is in range of
has M W F Material op, has Material op, is Used On op

Material Handling Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MaterialHandlingOperation

Materials handling includes the technologies for moving the process flow (dry) forward by loading, transportation, storage and feeding
has super-classes
Operation c
has sub-classes
Feeding Operation c, Loading Operation c, Storing Operation c, Transportation Operation c, Unloading Operation c
is disjoint with
Compaction Operation c, Crushing And Screening Operation c, Drilling Operation c, Grinding Operation c, Milling Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Material Measurementc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MaterialMeasurement

has super-classes
Measurement c
is disjoint with
Mineral Measurement c, Mining Waste Measurement c

Metalc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Metal

has super-classes
Mineral c
is in domain of
is Heavy Metal dp
is in range of
has Metal op
is disjoint with
Industrial Mineral c, Ore c, Rock c

Metricc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Metric

Metrics that translate collected data into representative information that can be used in decision-making
is in domain of
is Metric Successful dp
is in range of
has Assessment Metric op

Microscopic Characteristicsc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MicroscopicCharacteristics

has super-classes
core: Characteristics c

Milling Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MillingOperation

MWEI BREF : Operation during which ore is treated for the recovery and/or concentration of valuable minerals prior to shipment to a smelter or refinery. Milling processes include crushing, grinding, screening, concentration and dewatering. At a coal mine, the mill is referred to as a wash plant, tipple or cleaner
has super-classes
Mineral Processing Operation c
is disjoint with
Compaction Operation c, Crushing And Screening Operation c, Drilling Operation c, Grinding Operation c, Material Handling Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Minec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Mine

MWEI BREF : Area under the control of an operator where mining occurs (see "mining"), including common related infrastructure and waste management activities. INSPIRE: An excavation carried out for the extraction of mineral deposits.
is in domain of
has Area op, has Exploration Activity op, has Location op, has Mine Name dp, has Proximity dp, has Restriction op, has Risk op, has Status dp

Mineralc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Mineral

Mineral is a natural inorganic substance precisely defined according to its physical and chemical characteristics. INSPIRE: Mineral is defined as any naturally occurring inorganic element or compound having a periodically repeating arrangement of atoms and a characteristic chemical composition or range of compositions, resulting in distinctive physical properties.
has sub-classes
Industrial Mineral c, Metal c, Ore c, Rock c
is in domain of
has Composition dp, has Metal op, has Quality dp, has Quantity dp
is in range of
has Mineral op

Mineral Measurementc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MineralMeasurement

has super-classes
Measurement c
is disjoint with
Material Measurement c, Mining Waste Measurement c

Mineral Processing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MineralProcessingOperation

MWEI BREF : Mineral processing (also beneficiation or benefication, ore dressing, mineral dressing, milling) Processes to produce marketable mineral products (e.g. concentrates) from mineral resources. This is usually carried out on the mine or quarry site, the plant being referred to as the mineral processing plant (mill or concentrator). .The essential purpose is to reduce the bulk of the ore, which must be transported to and processed by subsequent processes (e.g. smelting), by using methods to separate the valuable (desired) mineral(s) from the gangue. The marketable product of this is called concentrate, the remaining material is called extractive waste from mineral processing (e.g. tailings). Mineral processing includes various procedures that rely on the mineral's physical characteristics (i.e. particle size, density, magnetic properties, colour) or physico-chemical properties (surface tension, hydrophobicity, wettability).
has super-classes
Operation c
has sub-classes
Blasting Operation c, Compaction Operation c, Crushing And Screening Operation c, Dewatering Operation c, Drilling Operation c, Grinding Operation c, Leaching Operation c, Milling Operation c, Primary Crushing Operation c, Pyro Processing Operation c, Slurry Processing Operation c

Mineralogical Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MineralogicalAnalysisOperation

Determines the types and relative amounts of minerals within a material, providing insights into its composition, properties, and formation conditions
has super-classes
Laboratory Analysis Operation c
is disjoint with
Chemical Analysis Operation c, Physical And Environmental Testing Operation c, Quality Assurance And Control Operation c, Sampling Preparation Operation c

Mineralogical Characteristicsc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MineralogicalCharacteristics

has super-classes
core: Characteristics c
is disjoint with
Geochemical Analysis c, Physical Analysis c

Mining L C Ac back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MiningLCA

LCA in mining is a systematic method for identifying, quantifying, and evaluating the environmental impacts associated with the entire life cycle of mining-related processes and products, from exploration and extraction to processing, transportation, use, and end-of-life management.
has super-classes
L C A c
is in domain of
has Input dp, has L C A Input op, has L C A Requirement op, has Requirment dp, has Situation dp, uses Standard op
is disjoint with
General L C A c

Mining Wastec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MiningWaste

MWEI BREF : Waste resulting from the prospecting, extraction, treatment and storage of mineral resources and the working of quarries. Mining activity exploits a mineral deposit, obtaining a concentrate (mineral object of the activity) and waste.
is in domain of
has Geotechnical Stability dp, has M W F op, has Material op, has Morphological Structure dp, has Vegetation dp, has Waste Type op
is in range of
has M W op, recovers M W op

Mining Waste Facilityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MiningWasteFacility

A mining waste facility is a designated site or structure used to store extractive waste (includes materials like waste rock and tailings from mining and mineral processing operations). MWEI BREF : Any area under the responsibility of an operator where extractive waste is handled, treated, accumulated or deposited whether in a solid or liquid state or in solution or suspension. This includes, but is not limited to, Extractive Waste Facilities, excavation voids where extractive waste is placed back, and areas for temporary storage of extractive waste. Mining Waste (INSPIRE Model) Mining waste can be defined as a part of the materials that result from the exploration, mining and processing of substances governed by legislation on mines and quarries.
is in domain of
has Activity op, has Area op, has Characteristics op, has Economic Evaluation op, has Environmental And Risk Analysis op, has Environmental Impact op, has Exploitation Extraction op, has Geo D P op, has Legal Status dp, has M W op, has M W F Material op, has Material op, has Owner dp, has Processing Plant op, has Regulation op, has Site Condition op, has Status dp, has Sustainability op, has Volume dp, has Waste Disposal Method op, has Waste Type op
is in range of
has M W F op

Mining Waste Measurementc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MiningWasteMeasurement

has super-classes
Measurement c
is disjoint with
Material Measurement c, Mineral Measurement c

Mitigation Environmental Impact Procedurec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MitigationEnvironmentalImpactProcedure

has super-classes
Mitigation Procedure c
is disjoint with
Social Acceptance Procedure c

Mitigation Procedurec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MitigationProcedure

has super-classes
Procedure c
has sub-classes
Mitigation Environmental Impact Procedure c, Social Acceptance Procedure c

Morphological Characteristicsc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MorphologicalCharacteristics

has super-classes
core: Characteristics c
is in domain of
has Weight dp

Multicable Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/MulticableEquipment

has super-classes
Exploration Equipment c
is disjoint with
Electrode Equipment c, Resistivimeter Equipment c

Noise Pollutionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/NoisePollution

has super-classes
Environmental Impact c
is disjoint with
Dust Emission c, Green House Gas Emission c, Light Pollution c, Vibration Emission c, Water Pollution c, Wildlife Impact c

Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Operation

It is an Activity
has sub-classes
Exploration Operation c, Material Handling Operation c, Mineral Processing Operation c
is in domain of
has Environmental Impact op, has Equipment op, has Location op, has Methodology op, has Technique op
is in range of
has Operation op

Orec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Ore

An ore is a mineral or rock containing metal ore mineral concentrations that can be economically extracted. The ore is the source from where the metal or other mineral substances are extracted
has super-classes
Mineral c
is disjoint with
Industrial Mineral c, Metal c, Rock c

P P E Protocolc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/PPEProtocol

Personal Protective Equipment (PPE), used to safeguard workers from exposure to hazardous substances
has super-classes
Protocol c
is disjoint with
Safety Protocol c

Permitc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Permit

License or consent to do or say something.
is in domain of
delivered By Competent Authority op, needs Monitoring Requirement op
is in range of
need Permit op

Petrological Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/PetrologicalAnalysisOperation

has super-classes
Laboratory Analysis Operation c

Physical And Environmental Testing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/PhysicalAndEnvironmentalTestingOperation

has super-classes
Laboratory Analysis Operation c
is disjoint with
Chemical Analysis Operation c, Mineralogical Analysis Operation c, Quality Assurance And Control Operation c, Sampling Preparation Operation c

Preparationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Preparation

has super-classes
Sampling Plan c

Primary Crushing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/PrimaryCrushingOperation

MWEI BREF : Process of reducing ore into smaller fragments to prepare it for further processing and/or so that it can be transported to the processing plant. In underground mines, the primary crusher is often located underground or at the entrance to the processing plant.
has super-classes
Mineral Processing Operation c

Processing Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ProcessingEquipment

What machinery/equipment is suitable to achieve desired particle size.
has super-classes
Equipment c
is disjoint with
Crushing Milling Equipment c, Transport Equipment c

Processing Plantc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ProcessingPlant

MWEI BREF : Facility where mineral processing is carried out. Mineral processing (also beneficiation or benefication, ore dressing, mineral dressing, milling) Processes to produce marketable mineral products (e.g. concentrates) from mineral resources. This is usually carried out on the mine or quarry site, the plant being referred to as the mineral processing plant (mill or concentrator). The essential purpose is to reduce the bulk of the ore, which must be transported to and processed by subsequent processes (e.g. smelting), by using methods to separate the valuable (desired) mineral(s) from the gangue. The marketable product of this is called concentrate, the remaining material is called extractive waste from mineral processing (e.g. tailings). Mineral processing includes various procedures that rely on the mineral's physical characteristics (i.e. particle size, density, magnetic properties, colour) or physico-chemical properties (surface tension, hydrophobicity, wettability).
is in domain of
has Environmental Impact op
is in range of
has Processing Plant op

Protocolc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Protocol

has super-classes
Control Measure c
has sub-classes
P P E Protocol c, Safety Protocol c
is disjoint with
Containment System c, Enclosures c, Water Sprays c

Pyro Processing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/PyroProcessingOperation

Pyro processing includes the technologies for upgrading of the mineral fractions by drying, calcining or sintering.
has super-classes
Mineral Processing Operation c
is disjoint with
Compaction Operation c, Crushing And Screening Operation c, Drilling Operation c, Grinding Operation c, Material Handling Operation c, Milling Operation c, Slurry Processing Operation c

Quality Assurance And Control Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/QualityAssuranceAndControlOperation

has super-classes
Laboratory Analysis Operation c
is disjoint with
Chemical Analysis Operation c, Mineralogical Analysis Operation c, Physical And Environmental Testing Operation c, Sampling Preparation Operation c

Reagentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Reagent

A substance or compound added to a system to cause a chemical reaction or test for the presence of another substance
is in domain of
alternative To op, has Efficiency dp, has Risk op, is Hazardous dp, is Reagent Conventional dp, is Used On op
is in range of
alternative To op, uses Reagent op

Reclamation Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ReclamationActivity

The relationship between reclamation and its impact on species presence and extinction risk, habitat extent and condition
has super-classes
Activity c
is in domain of
has Restoration Technique op

Recovery Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/RecoveryActivity

has super-classes
Activity c
is in domain of
recovers M W op, uses Technique op

Recovery Techniquec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/RecoveryTechnique

has super-classes
Technique c
is in domain of
has Recommanded Parameter dp, uses Reagent op
is in range of
uses Technique op

Regulation And Compliance Environmental Sustainabilityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/RegulationAndComplianceEnvironmentalSustainability

has super-classes
Environmental Sustainability c
is disjoint with
Environmental Footprint Environmental Sustainability c

Residual Materialc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ResidualMaterial

Waste material remaining after recovery processes, which may still contain hazardous substances
is in domain of
has Control Measure op
is in range of
generate Residual Material op

Resistivimeter Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ResistivimeterEquipment

has super-classes
Exploration Equipment c
is disjoint with
Electrode Equipment c, Multicable Equipment c

Restoration Techniquec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/RestorationTechnique

Catalog of restoration activities and their relative success in positively impacting species and habitats under different abiotic, biotic, and landscape conditions
has super-classes
Technique c
is in domain of
has Impact op
is in range of
has Restoration Technique op

Riskc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Risk

The probability and severity of adverse effects resulting from exposure to a hazard
has sub-classes
Economical Risk c, Environmental Risk c, Health Risk c
is in domain of
can Cause Impact op, has Impact op, has Likelihood dp
is in range of
has Risk op

Rockc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Rock

Rock is an aggregate of one or several minerals, forming the great mass of the earth’s crust. In certain cases, rock may consist of one single mineral as in the cases of limestone, which consists only of calcite, stratified clayish rock and quartzite layers, etc. Rocks may be solid, like granite, or unconsolidated like sand. Normally, rocks are formed by more than one mineral. Some of the minerals are predominant and form the essential components, and others, in smaller proportions, constitute the accessory minerals.
has super-classes
Mineral c
is disjoint with
Industrial Mineral c, Metal c, Ore c

Safety Protocolc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SafetyProtocol

Standard procedures and guidelines designed to protect workers from health and safety risks
has super-classes
Protocol c
is disjoint with
P P E Protocol c

Sample Crushing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SampleCrushingOperation

has super-classes
Sampling Preparation Operation c

Sample Drying Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SampleDryingOperation

has super-classes
Sampling Preparation Operation c

Sample Miling Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SampleMilingOperation

has super-classes
Sampling Preparation Operation c

Sampling Activityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SamplingActivity

It is work required to take a sample
has super-classes
Activity c

Sampling Preparation Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SamplingPreparationOperation

Once a mineral sample has been taken, a series of tasks must be carried out to allow its subsequent analysis.
has super-classes
Laboratory Analysis Operation c
has sub-classes
Sample Crushing Operation c, Sample Drying Operation c, Sample Miling Operation c
is disjoint with
Chemical Analysis Operation c, Mineralogical Analysis Operation c, Physical And Environmental Testing Operation c, Quality Assurance And Control Operation c

Slurry Processing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SlurryProcessingOperation

Slurry processing includes the technologies for wet processing of mineral fractions.
has super-classes
Mineral Processing Operation c
is disjoint with
Compaction Operation c, Crushing And Screening Operation c, Drilling Operation c, Grinding Operation c, Material Handling Operation c, Milling Operation c, Pyro Processing Operation c

Social Acceptance Procedurec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SocialAcceptanceProcedure

has super-classes
Mitigation Procedure c
is disjoint with
Mitigation Environmental Impact Procedure c

Social Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SocialImpact

has super-classes
Impact c

Social Restrictionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SocialRestriction

has super-classes
Restriction c
is disjoint with
Economic Restriction c, Environmental Restriction c, Spatial Restriction c, Technological Restriction c

Social Sustainabilityc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SocialSustainability

has super-classes
Sustainability c

Spatial Restrictionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SpatialRestriction

has super-classes
Restriction c
is disjoint with
Economic Restriction c, Environmental Restriction c, Social Restriction c, Technological Restriction c

Species Assessment Methodc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SpeciesAssessmentMethod

has super-classes
Biodiversity Assessment Method c
is disjoint with
Habitats Assessment Method c

Species Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SpeciesImpact

The impact of a proposed activity on the presence or absence of species and their level of extinction risk
has super-classes
Biodiversity Impact c

Species Management Guidelinec back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/SpeciesManagementGuideline

Guideline defining how to decide on management measures that create the best possible positive outcome for species presence and reducing extinction risk
has super-classes
Guidelines c
is disjoint with
Biodiversity Assessment Guideline c, Desktop Proximity Guideline c, Habitats Management Guideline c

Standardized Protocolsc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/StandardizedProtocols

A set of rules, procedures, or guidelines agreed upon and recognized by a community or industry to ensure consistency, interoperability, and efficiency in various situations
has super-classes
Execution Of Sampling Plan c
is disjoint with
Equipment c

Standardsc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Standards

International and national guidelines and norms for conducting LCA in the mining sector.
is in range of
uses Standard op

Storing Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/StoringOperation

has super-classes
Material Handling Operation c
is disjoint with
Feeding Operation c, Loading Operation c, Transportation Operation c, Unloading Operation c

Strategyc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Strategy

has super-classes
Sampling Plan c

Technological Restrictionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/TechnologicalRestriction

has super-classes
Restriction c
is disjoint with
Economic Restriction c, Environmental Restriction c, Social Restriction c, Spatial Restriction c

Thermal Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ThermalAnalysisOperation

has super-classes
Laboratory Analysis Operation c

Thermogravimetric Analysis Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/ThermogravimetricAnalysisOperation

has super-classes
Laboratory Analysis Operation c

Transport Equipmentc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/TransportEquipment

has super-classes
Equipment c
is disjoint with
Crushing Milling Equipment c, Processing Equipment c

Transportation Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/TransportationOperation

has super-classes
Material Handling Operation c
is disjoint with
Feeding Operation c, Loading Operation c, Storing Operation c, Unloading Operation c

Unloading Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/UnloadingOperation

has super-classes
Material Handling Operation c
is disjoint with
Feeding Operation c, Loading Operation c, Storing Operation c, Transportation Operation c

Vertical Electrical Sounding Operationc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/VerticalElectricalSoundingOperation

has super-classes
Geotechnical Assessment Operation c
is disjoint with
Electrical Tomography Operation c, Geo Electrical Inversion Operation c, Ground Penetrating Radar Operation c

Vibration Emissionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/VibrationEmission

has super-classes
Environmental Impact c
is disjoint with
Dust Emission c, Green House Gas Emission c, Light Pollution c, Noise Pollution c, Water Pollution c, Wildlife Impact c

Water Pollutionc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/WaterPollution

has super-classes
Environmental Impact c
is disjoint with
Dust Emission c, Green House Gas Emission c, Light Pollution c, Noise Pollution c, Vibration Emission c, Wildlife Impact c

Water Spraysc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/WaterSprays

has super-classes
Control Measure c
is disjoint with
Containment System c, Enclosures c, Protocol c

Weatherc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/Weather

has super-classes
Site Condition c

Wildlife Impactc back to ToC or Class ToC

IRI: http:/purl.org/scimin-crm-mwf/WildlifeImpact

has super-classes
Biodiversity Impact c
is disjoint with
Dust Emission c, Green House Gas Emission c, Light Pollution c, Noise Pollution c, Vibration Emission c, Water Pollution c

Object Properties

alternative Toop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/alternativeTo

A safer or more sustainable substitute for a hazardous reagent used in industrial processes

has characteristics: irreflexive

has super-properties
top Object Property op
has domain
Reagent c
has range
Reagent c

applies Toop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/appliesTo

has domain
L C A c
has range
Environmental Impact c

assessop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/assess

has domain
Assessment Method c
has range
Impact c

can Cause Impactop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/canCauseImpact

has domain
Risk c
has range
Impact c

contains Hazardous Substanceop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/containsHazardousSubstance

has domain
Material c
has range
Hazardous Substance c

defined By Regulationop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/definedByRegulation

has domain
Monitoring Requirement c
has range
Regulation c

delivered By Competent Authorityop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/deliveredByCompetentAuthority

has domain
Permit c
has range
Authority c

generate Residual Materialop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/generateResidualMaterial

Waste material remaining after recovery processes, which may still contain hazardous substances
has domain
Material c
has range
Residual Material c

has Activityop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasActivity

has domain
Mining Waste Facility c
has range
Activity c

has Airborne Hazardop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasAirborneHazard

has domain
Excavation Activity c
has range
Airborne Hazard c

has Areaop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasArea

This term is analogus to structure of deposit/mine
has domain
Mine c
Mining Waste Facility c
has range
Area c

has Assessment Methodop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasAssessmentMethod

has domain
Impact c
has range
Assessment Method c

has Assessment Metricop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasAssessmentMetric

has domain
Assessment Method c
has range
Metric c

has Characteristicsop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasCharacteristics

has domain
Mining Waste Facility c
has range
core: Characteristics c

has Community Engagement Strategyop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasCommunityEngagementStrategy

has domain
Activity c
has range
Community Engagement Strategy c

has Control Measureop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasControlMeasure

has domain
Activity c
Airborne Hazard c
Residual Material c
has range
Control Measure c

has Economic Evaluationop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEconomicEvaluation

has super-properties
top Object Property op
has domain
Mining Waste Facility c
has range
Economic Evaluation Operation c

has Emergency Protocolop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEmergencyProtocol

has domain
Hazardous Substance c
Incident c
has range
Emergency Protocol c

has Environmental And Risk Analysisop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEnvironmentalAndRiskAnalysis

has domain
Mining Waste Facility c
has range
Environmental And Risk Analysis Operation c

has Environmental Impactop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEnvironmentalImpact

has domain
Mining Waste Facility c
Operation c
Processing Plant c
has range
Environmental Impact c

has Equipmentop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEquipment

has domain
Operation c
has range
Equipment c

has Evaluation Parameterop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEvaluationParameter

has domain
Material c
Sampling Plan c

has Executionof Sampling Planop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasExecutionofSamplingPlan

has domain
Sampling Plan c
has range
Execution Of Sampling Plan c

has Exploitation Extractionop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasExploitationExtraction

has domain
Mining Waste Facility c
has range
Exploitation Extraction c

has Exploration Activityop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasExplorationActivity

has super-properties
top Object Property op
has domain
Mine c
has range
Exploration Activity c

has Geo D Pop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasGeoDP

has domain
Mining Waste Facility c
has range
Georeferenced Data Points c

has Granulometryop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasGranulometry

has domain
Material c
has range
Granulometry c

has Impactop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasImpact

has domain
Restoration Technique c
Risk c
has range
Impact c

has Incidentop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasIncident

has domain
Activity c
has range
Incident c

has L C A Inputop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLCAInput

has domain
Mining L C A c

has L C A Requirementop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLCARequirement

has domain
Mining L C A c

has Laboratory Analysisop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLaboratoryAnalysis

has domain
Sampling Plan c
has range
Laboratory Analysis Operation c

has Levelop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLevel

has super-properties
top Object Property op
has domain
Scenario c
has range
Level c

has Locationop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLocation

has domain
Mine c
Operation c
has range
Location c

has M Wop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMW

has domain
Mining Waste Facility c
has range
Mining Waste c
is inverse of
has M W F op

has M W Fop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMWF

has domain
Mining Waste c
has range
Mining Waste Facility c
is inverse of
has M W op

has M W F Materialop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMWFMaterial

has domain
Mining Waste Facility c
has range
Material c

has Materialop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMaterial

has domain
Mining Waste c
Mining Waste Facility c
has range
Material c

has Metalop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMetal

has domain
Mineral c
has range
Metal c

has Methodologyop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMethodology

has domain
Operation c
has range
Methodology c

has Mineralop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMineral

has domain
Material c
has range
Mineral c

has N A C E Codeop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasNACECode

has domain
Economic Activity c
has range
N A C E Code c

has Operationop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasOperation

has domain
Activity c
has range
Operation c

has Processing Plantop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasProcessingPlant

has super-properties
top Object Property op
has domain
Mining Waste Facility c
has range
Processing Plant c

has Regulationop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasRegulation

has domain
Mining Waste Facility c
has range
Regulation c

has Restoration Techniqueop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasRestorationTechnique

has domain
Reclamation Activity c
has range
Restoration Technique c

has Restrictionop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasRestriction

has domain
Mine c
has range
Restriction c

has Riskop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasRisk

has super-properties
top Object Property op
has domain
Activity c
Mine c
Reagent c
has range
Risk c

has Scenarioop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasScenario

has domain
Exploitation Extraction c
has range
Scenario c

has Site Conditionop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasSiteCondition

has domain
Mining Waste Facility c
has range
Site Condition c

has Sustainabilityop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasSustainability

has domain
Mining Waste Facility c
has range
Sustainability c

has Techniqueop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasTechnique

has domain
Operation c
has range
Technique c

has Waste Disposal Methodop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasWasteDisposalMethod

has domain
Mining Waste Facility c
has range
Waste Disposal Method c

has Waste Typeop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasWasteType

has domain
Mining Waste c
Mining Waste Facility c
has range
Waste Type c

is Used Onop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/isUsedOn

has domain
Reagent c
has range
Material c

need Permitop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/needPermit

has super-properties
top Object Property op
has domain
Activity c
has range
Permit c

needs Monitoring Requirementop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/needsMonitoringRequirement

has domain
Permit c
has range
Monitoring Requirement c

recovers M Wop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/recoversMW

has super-properties
top Object Property op
has domain
Recovery Activity c
has range
Mining Waste c

uses Reagentop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/usesReagent

has domain
Recovery Technique c
has range
Reagent c

uses Standardop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/usesStandard

has domain
Mining L C A c
has range
Standards c

uses Techniqueop back to ToC or Object Property ToC

IRI: http:/purl.org/scimin-crm-mwf/usesTechnique

has domain
Recovery Activity c
has range
Recovery Technique c

Data Properties

has Airbone Hazard Concentrationdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasAirboneHazardConcentration

The amount and density of airborne particulate matter released during excavation activities
has domain
Airborne Hazard c

has Assessment Datadp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasAssessmentData

has domain
Assessment Method c

has Categorydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasCategory

has domain
Measurement c

has Compositiondp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasComposition

has domain
Mineral c

has Densitydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasDensity

has domain
Material c

has Depthdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasDepth

has domain
Material c

has Drillhole Extractiondp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasDrillholeExtraction

has domain
Exploitation Extraction c
has range
boolean

has Efficiencydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEfficiency

has domain
Control Measure c
Reagent c
has range
float
integer

has Energydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasEnergy

has domain
Equipment c

has Finisheddp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasFinished

has domain
Activity c
has range
boolean

has Geographical Scaledp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasGeographicalScale

Both the scale that a proposed activity takes up in the landscape as well as its environmental impact outside its boundary
has domain
Impact c

has Geotechnical Stabilitydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasGeotechnicalStability

has domain
Mining Waste c

has Heightdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasHeight

has domain
Area c

has Inputdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasInput

has super-properties
top Data Property dp
has domain
Mining L C A c

has Legal Statusdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLegalStatus

has domain
Mining Waste Facility c

has Lengthdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLength

has domain
Area c

has Likelihooddp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasLikelihood

has domain
Risk c
has range
string

has Mechanical Resistancedp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMechanicalResistance

has domain
Macroscopic Characteristics c

has Mine Namedp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMineName

has super-properties
top Data Property dp
has domain
Mine c

has Morphological Structuredp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasMorphologicalStructure

has domain
Mining Waste c

has Open Pitdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasOpenPit

has domain
Exploitation Extraction c
has range
boolean

has Ownerdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasOwner

has domain
Mining Waste Facility c

has Particle Sizedp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasParticleSize

The particle size of MWF material
has domain
Granulometry c

has Proximitydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasProximity

has domain
Mine c

has Qualitydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasQuality

has domain
Mineral c

has Quantitydp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasQuantity

has domain
Mineral c

has Recommanded Parameterdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasRecommandedParameter

has domain
Recovery Technique c

has Requirmentdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasRequirment

LCA Mining Requirements The technical, methodological, and data-related prerequisites for conducting an accurate and transparent LCA in the mining sector, including access to reliable data, clearly defined system boundaries, functional
has domain
Mining L C A c

has Situationdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasSituation

LCA Mining Situations Different contexts or application areas in which LCA is used in mining.
has domain
Mining L C A c

has Size Distributiondp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasSizeDistribution

The particle size distribution of MWF material
has domain
Granulometry c

has Statusdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasStatus

has domain
Mine c
Mining Waste Facility c

has Thicknessdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasThickness

has domain
Material c

has Underground Extractiondp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasUndergroundExtraction

has domain
Exploitation Extraction c
has range
boolean

has Vegetationdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasVegetation

has domain
Mining Waste c

has Volumedp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasVolume

has domain
Mining Waste Facility c

has Weightdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasWeight

has domain
Morphological Characteristics c

has Widthdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/hasWidth

has domain
Area c

is Hazardousdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/isHazardous

A reagent that poses risks to health or the environment due to its toxic, corrosive or reactive properties
has domain
Reagent c

is Heavy Metaldp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/isHeavyMetal

Dense elements or compound, often metals, found in tailings that may pose environmental or health risks
has domain
Metal c
has range
boolean

is Historical Incidentdp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/isHistoricalIncident

has domain
Incident c
has range
boolean

is Metric Successfuldp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/isMetricSuccessful

Relevant data collection and associated metrics that translate into representative information that can be used to define whether restoration has a positive impact on biodiversity
has domain
Metric c

is Reagent Conventionaldp back to ToC or Data Property ToC

IRI: http:/purl.org/scimin-crm-mwf/isReagentConventional

has domain
Reagent c
has range
boolean

Annotation Properties

contributorap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/contributor

creatorap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/creator

descriptionap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/description

licenseap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/terms/license

titleap back to ToC or Annotation Property ToC

IRI: http://purl.org/dc/elements/1.1/title

Legend back to ToC

c: Classes
op: Object Properties
dp: Data Properties

References back to ToC

  1. EarthResourceML. (2026, April). EarthResourceML. Retrieved April 2026, from http://www.earthresourceml.org
  2. INSPIRE Thematic Working Group Mineral Resources. (2026, April). INSPIRE data specification on mineral resources – Technical guidelines. Retrieved April 2026, from https://inspire-mif.github.io/technical-guidelines/data/mr/dataspecification_mr.pdf
  3. Tishchungoora. (2026). LCA ontology [GitHub repository]. GitHub. Retrieved April 2026, from https://github.com/tishchungoora/lca-ontology
  4. European Commission. (n.d.). Reference document on best available techniques for management of tailings and waste-rock in mining activities (MWEI BREF). Retrieved April 2026, from https://ec.europa.eu/environment/pdf/waste/mining/MWEI%20BREF.pdf

Acknowledgments back to ToC

This study has been performed under the project SCIMIN-CRM-Sustainable & Circular Production of Mineral Critical Raw Materials, funded by Horizon Europe research and innovation programme (UE:101177746). The authors would like to thank Silvio Peroni for developing LODE, a Live OWL Documentation Environment, which is used for representing the Cross Referencing Section of this document and Daniel Garijo for developing Widoco, the program used to create the template used in this documentation.
